TRACIT-1100
Non-Hardening Heat Transfer Cement for Clamp-On/Plate Coil Applications
TRACIT-1100 is a non-hardening heat transfer cement designed for externally heated or cooled tanks and vessels utilizing clamp-on (plate-type) coils.
Applied between the coil and vessel wall prior to installation, TRACIT-1100 eliminates air gaps and creates a highly conductive thermal interface. This significantly improves heat transfer efficiency by maximizing surface contact and conduction.
Plate-type coils installed with TRACIT-1100 can experience up to a tenfold increase in heat transfer rates compared to installations without conductive mastic. Because TRACIT-1100 remains pliable, it maintains intimate surface contact during thermal expansion and contraction cycles. The compound is waterproof, non-curing, and functions as a corrosion barrier.
TRACIT-1100 is recommended for heating applications, while TRACIT-1000 is formulated for cooling service.
For drum pumping applications, request the lower viscosity formulation TRACIT-1100A.
Technical Specifications
Maximum service temperature: 450°F (232°C)
Minimum service temperature: -116°F (-80°C)
Minimum application temperature: 5°F (15°C)
Heat transfer coefficient, Ut, heat source to vessel wall: 20-40 Btu/hr•°F•ft2 (114-227 w/m2•°C)
Water-soluble: No
Curing: None required.
Shelf life: Indefinite.
Coverage rates: 12 ft.²/gallon (1/8" thick), 6 ft.² /gallon (1/4" thick)
Container sizes: Caulk gun cartridges (10 or 32 oz), 5-gallon pail, 1-gallon pail, quart and pint cans. Also available in 55-gallon drums for pumping applications (TRACIT-1100A).
Installation Instructions
- No premixing or curing required.

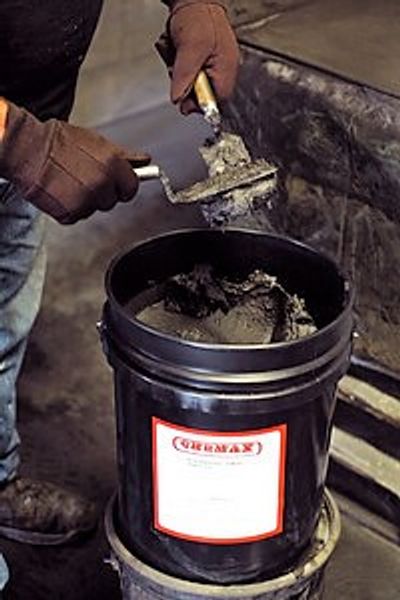

- Apply a uniform 1/8"–1/4" layer using a hand trowel to mechanically mounted surfaces such as clamp-on coils.
- Ensure full surface contact to eliminate air gaps.
- In cold environments, product may be warmed (up to 80°F) to reduce viscosity and improve workability.
- Remove excessive dirt, rust, or loose coatings prior to installation for optimal performance.
Removal
- Do not expose to open flame or strong oxidizing agents.
- If removal is required, scrape off with hand tools and use an industrial degreasing agent as needed.
Wear protective gloves and eye protection during handling.
